Description

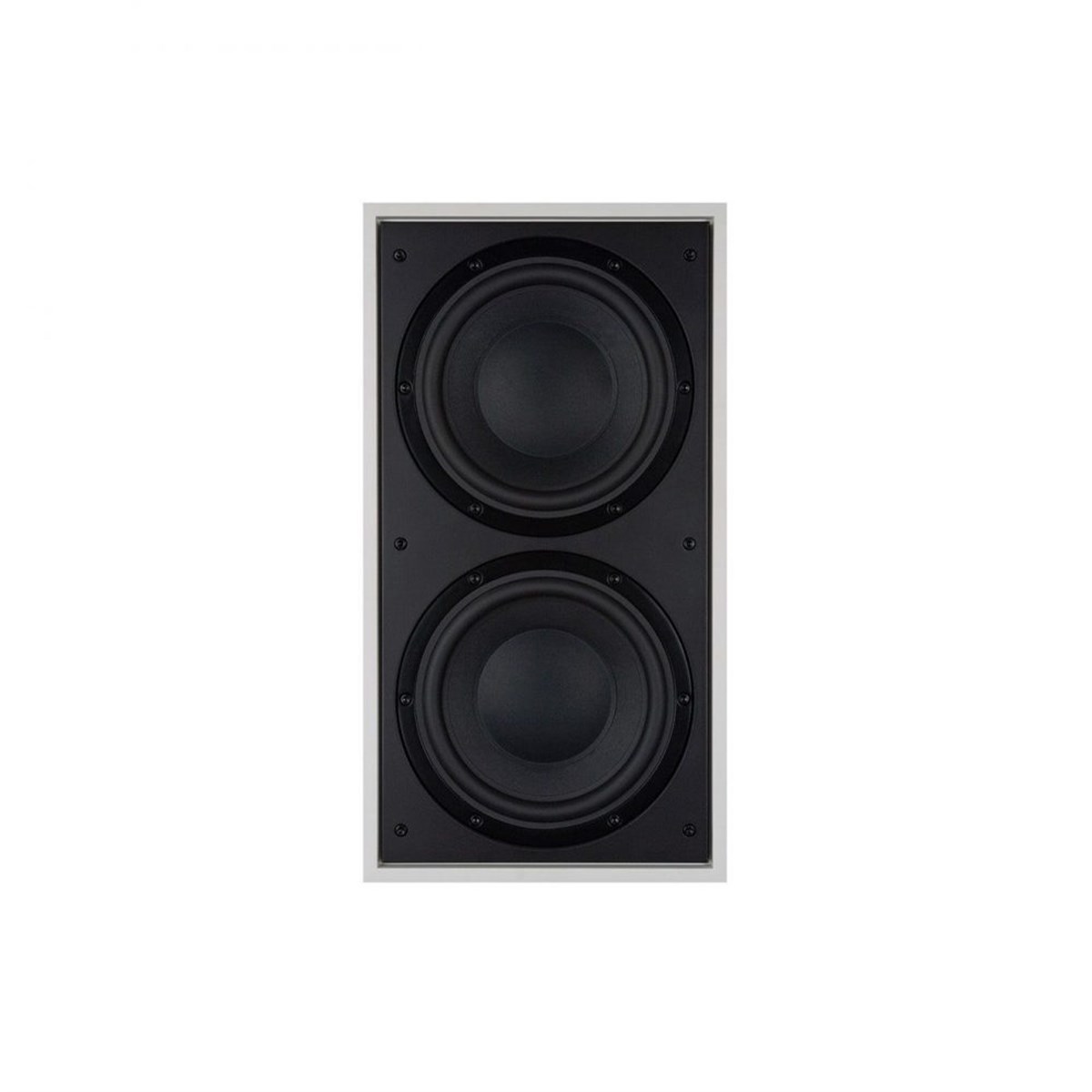

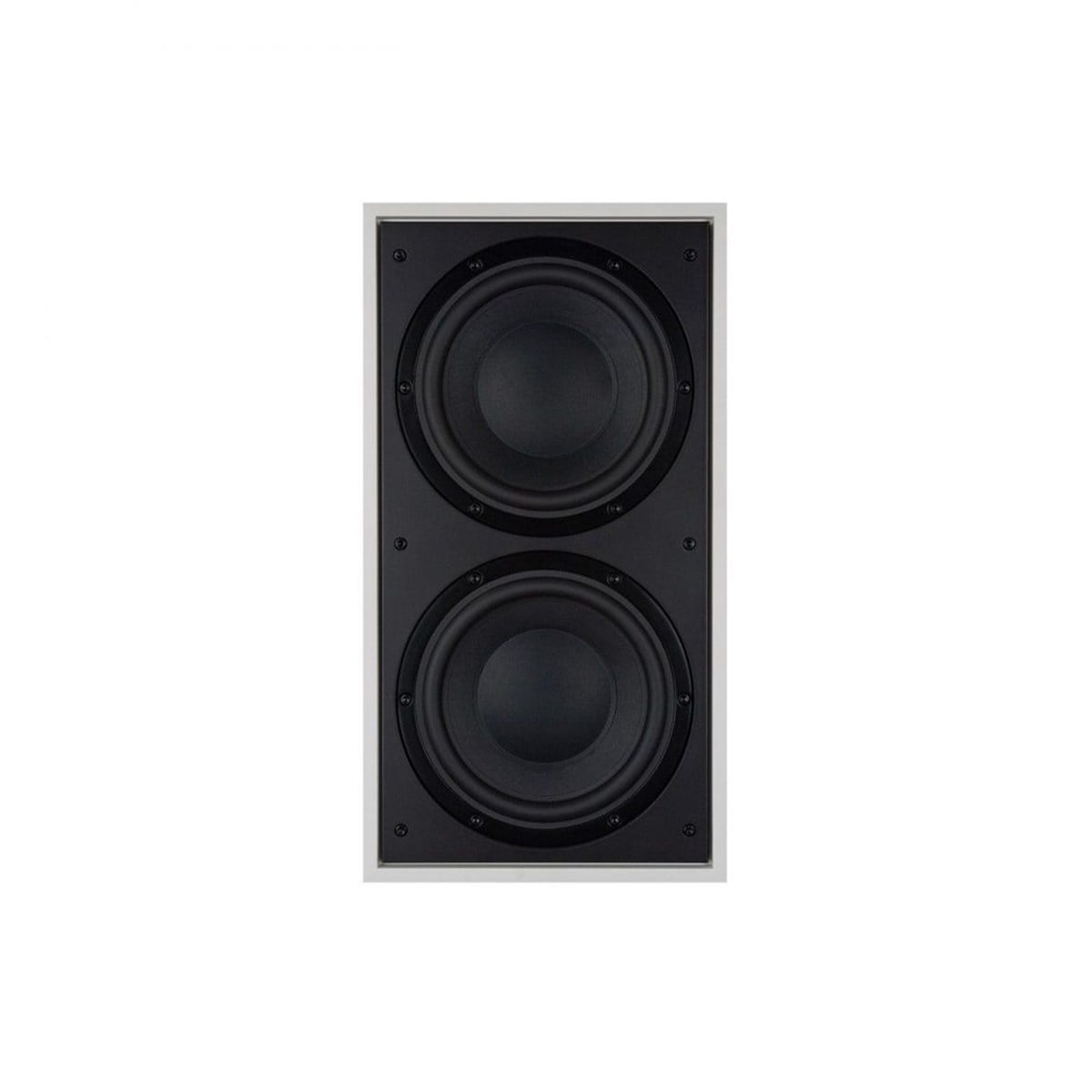

In wall subwoofer system with external rack-mount amplifier
Drive units
2 x 200mm (8 in) Paper/Kevlar® cone
Frequency range
-6dB at 17Hz and 290Hz adjustable (EQ at A)
Frequency response
±3dB 21Hz – 200Hz adjustable (EQ at A)
Bass extension:
-6dB at 17Hz (position A)
-6dB at 21Hz (position B)
-6dB at 24Hz (position C)
Power Handling
200W 8Ω (minimum 6.3Ω)
Dimensions:
Height: 494mm (19.5 in)
Width: 264mm (10.4 in)
Cut-out size:
Height – 485mm (19 in)
Width – 255 (10 in)
Net weight
6.4kg (14.1lb)

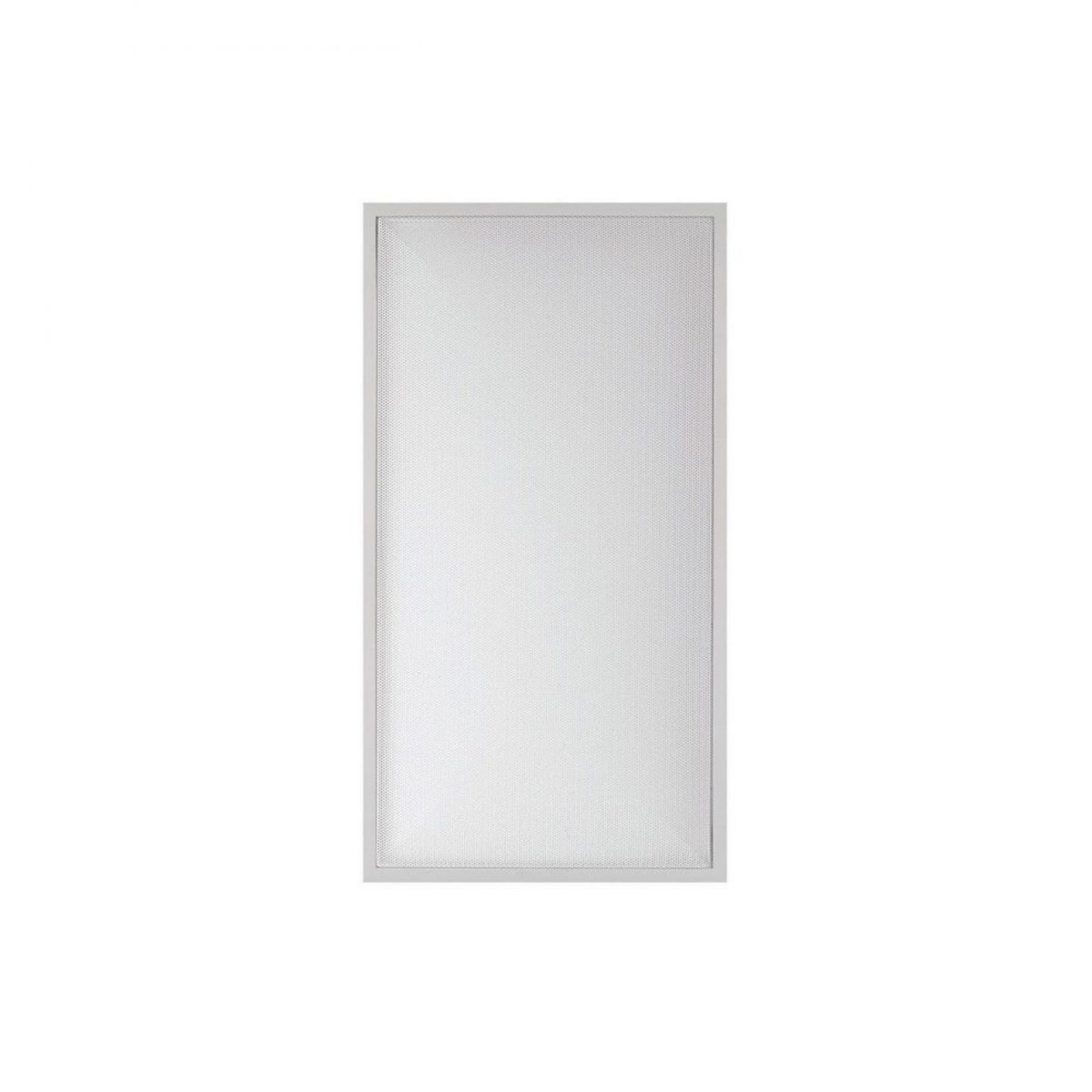

Finish Frame/Grille
Semi-matt white suitable for customising or pre-painting
Accessories
Pre-mount kit for new construction
Back box
Box:
Height – 1406mm (55.4 in)
Width – 345mm (13.6 in)
Depth – 85mm (3.4 in)
Net Weight
9.6kg (21.2lb)
Material
MDF
